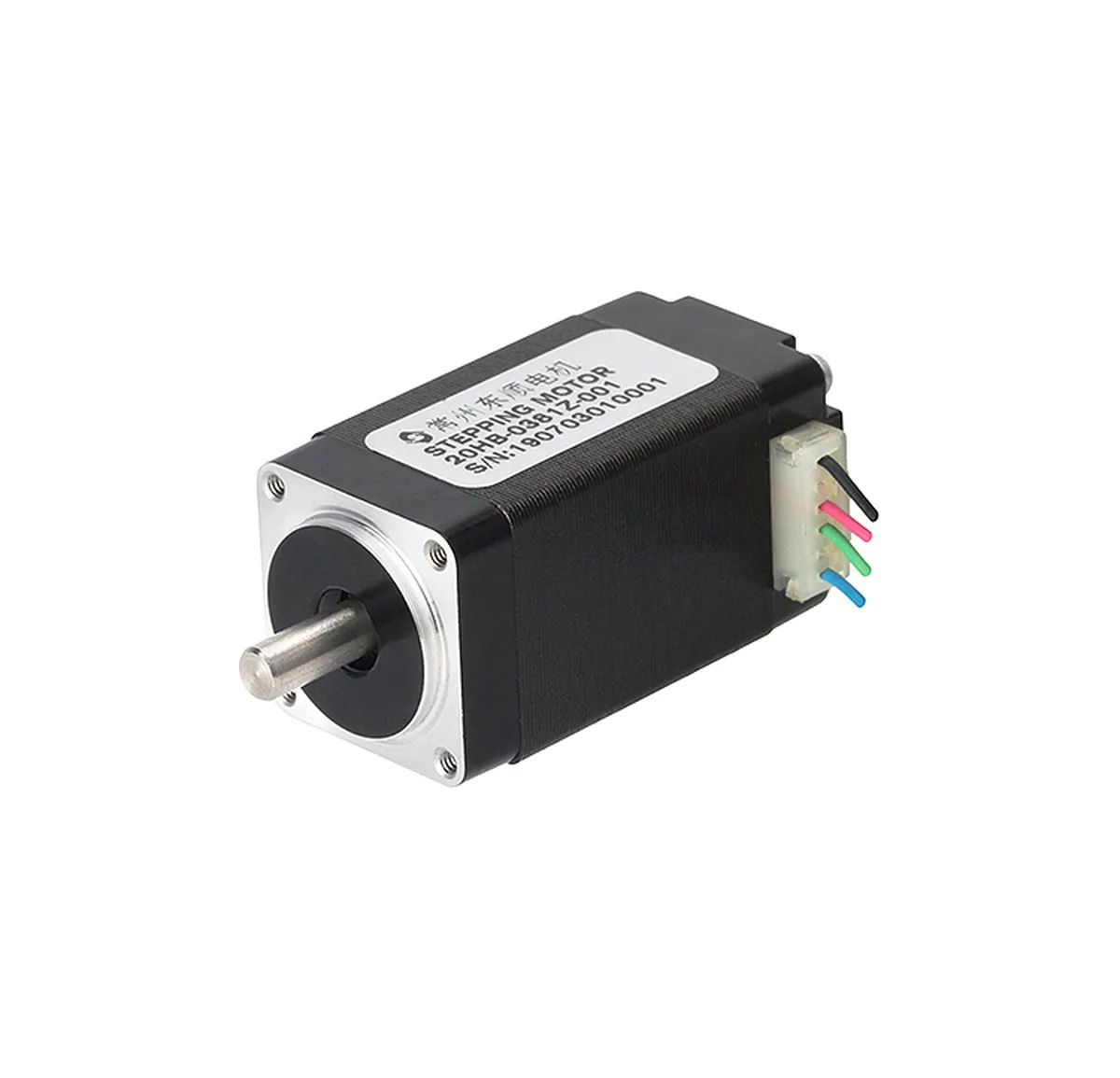

What is a NEMA 8 stepper motor?

NEMA8 stepper motors are miniature precision devices that are commonly used in a wide range of applications from medical instruments to robotics. The "NEMA8" name refers to the physical size and mounting configuration of the motor.

Understanding NEMA Standards

NEMA is a standard set by the National Electrical Manufacturers Association. The number after "NEMA" refers to the panel size of the motor. For example, a NEMA 8 motor has a panel size of approximately 0.8 inches x 0.8 inches (20mm). There are also standards for mounting hole locations and shaft diameters.

Characteristics and applications of NEMA8 stepper motors

The 20 Series is one of the smallest stepper motors available, a feature that makes it an excellent choice for space-constrained applications. Despite its small size, it still offers precise control and holding torque.

Common applications for NEMA8 stepper motors include medical and laboratory instruments, robotics and other precision machinery. In these applications, the small size and precise control of the motors is critical. For example, in medical instruments such as blood analyzers, NEMA8 stepper motors are used to move sample trays with extreme precision.

Conclusion

NEMA stepper motors are an indispensable tool for many applications due to their compact size combined with precise control. Understanding their operation and applications not only provides insight into this specific component but also a broader understanding of the motor's role in modern technology.
