What is full stepping and half stepping in stepper motor?

Stepper motors are widely used in various industrial and consumer applications for their precise control and ability to move in discrete steps. Understanding the concepts of full stepping and half stepping is essential for engineers and enthusiasts looking to utilize stepper motors effectively in their designs. In this comprehensive guide, we will delve into the details of these two fundamental driving modes for stepper motors.

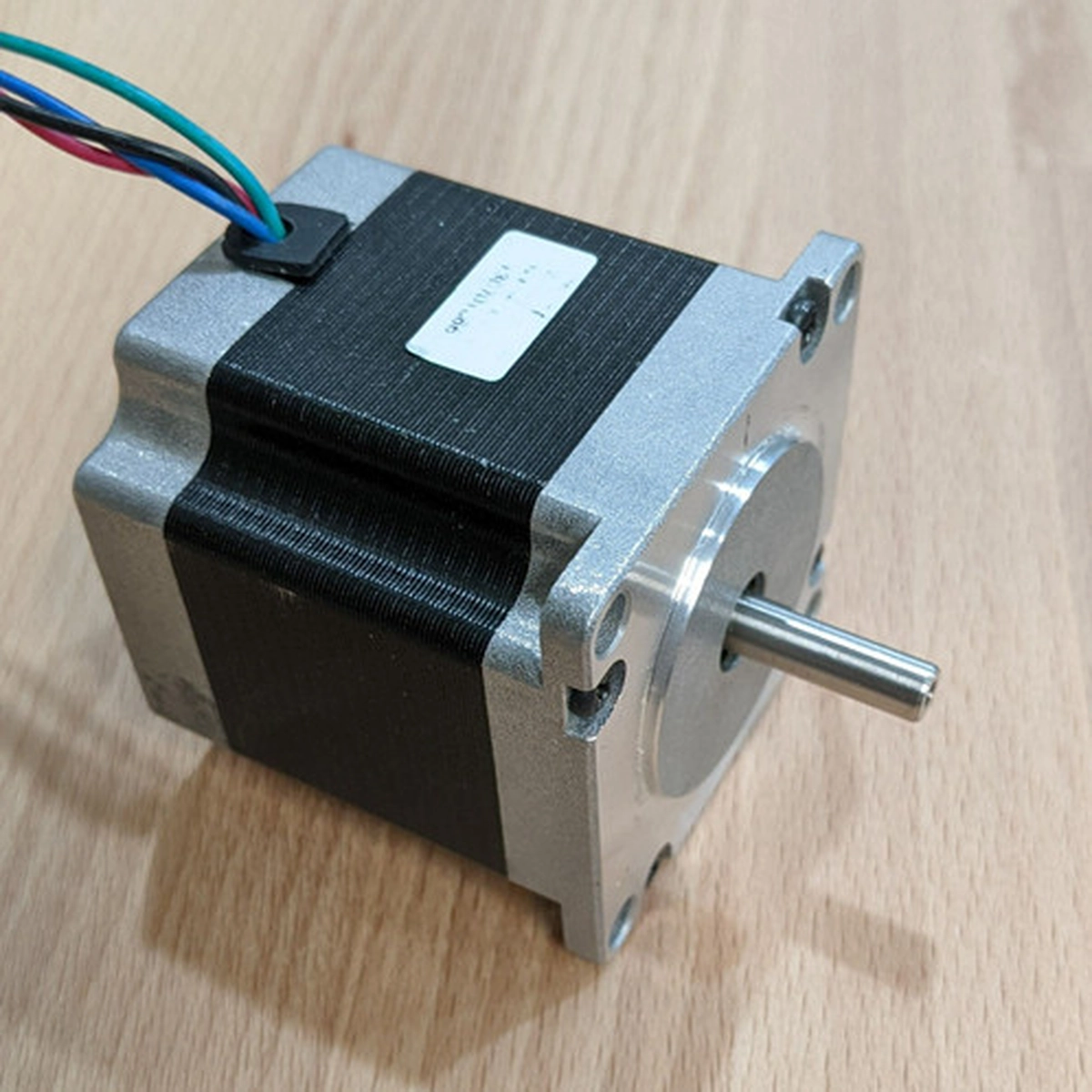

Stepper Motors

Before exploring full stepping and half stepping, it's crucial to grasp the basic principles of a stepper motor. Unlike conventional DC or AC motors, which continuously rotate when power is applied, stepper motors move in distinct increments or steps. These steps are achieved by energizing sets of coils within the motor in sequence, causing the rotor to move in a controlled manner.

Stepper motors offer precise positioning and high reliability, making them ideal for applications such as 3D printers, CNC machines, robotics, and automated equipment.

Full Stepping

Full stepping, also known as wave drive, is one of the simplest driving modes for stepper motors. In full stepping, each step corresponds to a single energization state of the motor windings. For a unipolar motor, this means only one phase is powered at any given time, while for a bipolar motor, one of the two phases is energized per step.

Working Principle

In full stepping, the motor moves from one step to the next by sequentially energizing the coils. This results in a relatively larger step angle compared to half stepping, typically 1.8 degrees for a standard 200-step-per-revolution motor. Due to the more significant rotational movement per step, full stepping can provide higher torque compared to half stepping, resulting in better overall motor performance in some scenarios.

Advantages of Full Stepping

• Simplified Control: Full stepping requires a simpler control algorithm and driver circuitry, making it easier to implement in certain applications.
• Higher Torque: Due to the larger step angle, full stepping can offer greater torque output from the motor, particularly at lower speeds.
• Reduced Resonance Issues: Full stepping can help mitigate resonance-related problems that may occur in certain stepper motor setups.

Limitations of Full Stepping

• Lower Resolution: Because of the larger step angle, full stepping provides lower resolution compared to half stepping, potentially affecting precision in applications requiring finer movements.
• Increased Vibrations: At certain speeds, the larger steps in full stepping may lead to increased motor vibrations and audible noise, impacting system performance and user experience.

Half Stepping

Half stepping, sometimes referred to as half wave drive, represents a more advanced driving mode for stepper motors. As the name suggests, half stepping allows for finer angular resolution by utilizing intermediate steps between the regular full steps.

Working Principle

In half stepping, the motor's coils are energized in a sequential manner similar to full stepping. However, during half stepping, the motor briefly undergoes a state where both adjacent coils are partially energized simultaneously. This results in the motor moving through half steps, effectively doubling the resolution compared to full stepping.

Advantages of Half Stepping

• Improved Resolution: Half stepping offers finer angular resolution due to the inclusion of intermediate steps, allowing for smoother and more precise movements.
• Reduced Vibrations: The inclusion of intermediate steps in half stepping helps reduce vibrations and audible noise, promoting smoother operation and enhanced user experience.
• Enhanced Positioning Accuracy: With its increased resolution, half stepping enables more accurate positioning and control in applications where precision is critical.

Limitations of Half Stepping

• Complexity: Implementing halfstepping requires more sophisticated control logic and driver circuitry compared to full stepping, potentially adding complexity to the overall system design.
• Reduced Torque: Due to the smaller steps, half stepping may result in reduced torque at higher speeds compared to full stepping, affecting the motor's performance in certain high-speed applications.

Application Considerations

The choice between full stepping and half stepping depends on the specific requirements of the application and the desired balance between precision, torque, and complexity. Here are some considerations for selecting the appropriate driving mode:

• Resolution Requirements: Applications demanding high positional accuracy often benefit from half stepping's finer resolution, while those requiring less precision may find full stepping adequate.
• Torque and Speed: For applications needing higher torque at low speeds, full stepping may be a better choice, whereas those needing enhanced speed and precision might favor half stepping.
• Control Complexity: Designers should consider the level of complexity they are willing to handle when choosing between full stepping and half stepping, as the latter generally involves more intricate control schemes.
