PM stepper motor or hybrid stepper motor, which one is better?

When it comes to precise control of motion in various applications such as robotics, 3D printing, CNC machines, and medical equipment, stepper motors play a vital role. Among the different types of stepper motors available, Permanent Magnet (PM) stepper motors and Hybrid stepper motors are commonly used. This article aims to provide a comprehensive analysis of both types, highlighting their differences, advantages, and suitable applications. I hope that after reading this article, it can help you understand which type of stepper motor is best for your application needs.

PM Stepper Motors

Permanent magnet stepper motors are the simplest type of stepper motor, consisting primarily of a rotor with permanent magnets and a stator with two coils. When current is applied to one of the coils, it generates a magnetic field that attracts the permanent magnet rotor, resulting in controlled motion. They mainly have the following advantages:

• Lower Cost: PM stepper motors are generally less expensive compared to hybrid stepper motors, making them a suitable choice for applications with budget constraints.
• Simpler Design: PM stepper motors have a simpler design, making them easier to manufacture and maintain. Their simplicity contributes to their cost-effectiveness.
• Good Low-Speed Performance: PM stepper motors provide reliable performance at low speeds, making them ideal for applications that require precise position control in a slower operational range.

PM stepper motors find extensive use in small robotics projects, cameras, toys, medical equipment, scientific instruments, and laboratory automation. They excel in applications where precise control at low speeds is crucial, such as high-precision microscopes and automated pipetting systems. Additionally, they can be employed in automotive applications like electric power steering systems, throttle control, and braking systems.

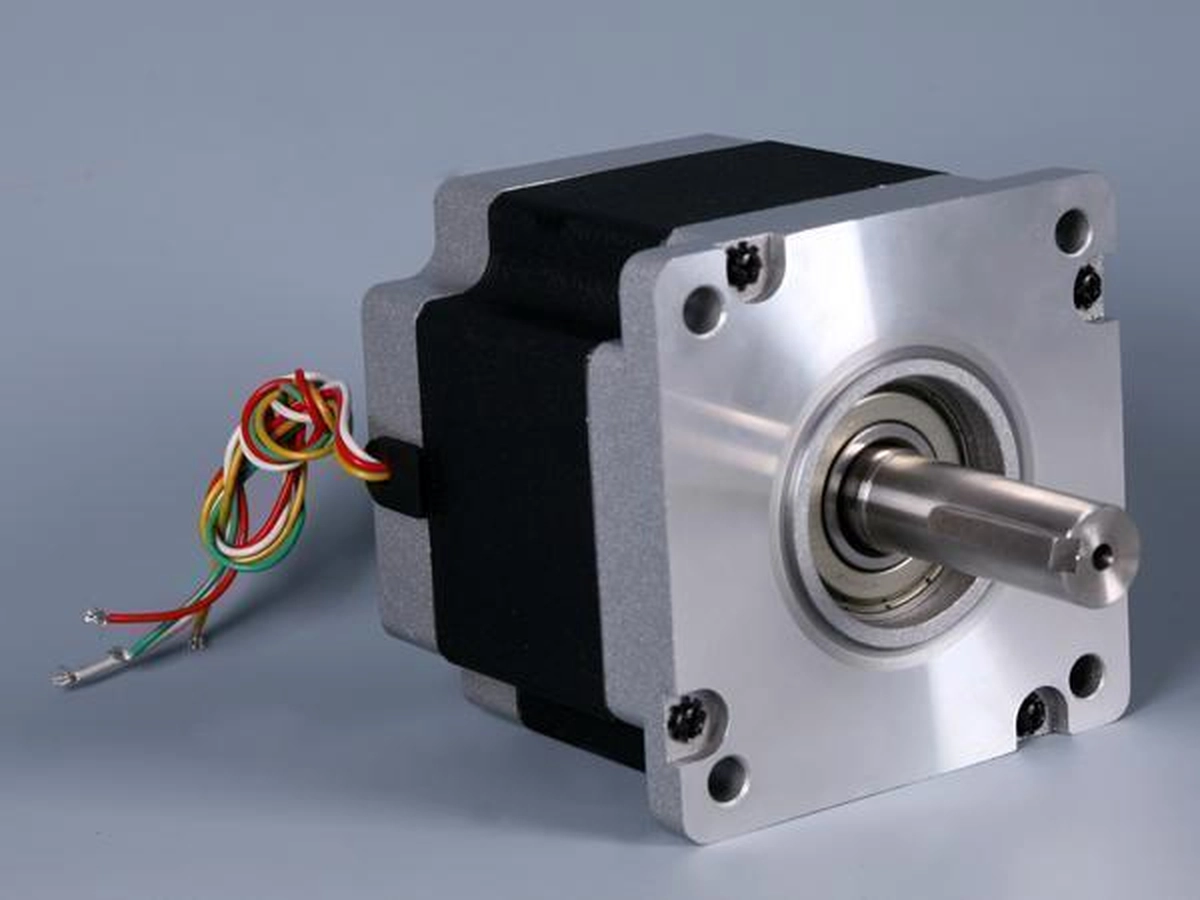

Hybrid Stepper Motors

Hybrid stepper motors are more complex compared to PM stepper motors. They typically utilize sintered magnets, which offer higher magnetic flux compared to the bonded magnets used in PM motors. Hybrid stepper motors incorporate laminated stacks with precise teeth profiles in the rotor and stator, enabling smaller step sizes and more precise control. Key advantages of hybrid stepper motors include:

1. High Torque: Hybrid stepper motors deliver higher torque output, making them suitable for applications that involve moving large loads.
2. Precise Positioning: Hybrid stepper motors offer smaller step sizes, allowing for precise positioning. This characteristic is crucial in applications that require accurate control over motion.
3. Repeatable Movement: Hybrid stepper motors exhibit highly repeatable movement, making them perfect for applications with repetitive motions. This reliability is achievable even without the use of position feedback sensors.

Hybrid stepper motors are commonly used in CNC machines, 3D printers, industrial automation, material handling systems, robotics, and pick-and-place machines. Their high torque output and precise control make them an optimal choice for applications demanding accuracy and precision. They can also be utilized in scenarios where a PM stepper motor requires more power or enhanced reliability. The incorporation of stainless steel bearings allows for reduced friction even at high speeds.

Differences and Considerations

When deciding between PM stepper motors and hybrid stepper motors, several factors should be taken into account:

• Torque: Hybrid stepper motors offer higher torque output compared to PM stepper motors. The required torque for the specific application should be carefully evaluated.
• Cost: PM stepper motors are generally less expensive compared to hybrid stepper motors. The available budget should be considered when selecting the appropriate motor.
• Resolution: Hybrid stepper motors provide smaller step sizes, allowing for more precise control. If precise positioning is crucial, the resolution capability should be a determining factor.
• Maintenance: Hybrid stepper motors tend to have a longer lifespan compared to PM stepper motors. The maintenance requirements and expected lifespan of the motor should be assessed.
• Load: Hybrid stepper motors typically have a higher load rating due to the use of steel ball bearings in their construction. The load requirements of the application should be considered.
• Control: The control system used to operate the motor should be compatible with the chosen stepper motor type. The control requirements of the application must be taken into account.

Conclusion

When considering the choice between PM stepper motors and hybrid stepper motors, it is essential to evaluate the specific requirements of the application. PM stepper motors are advantageous in terms of cost, simplicity, and low-speed performance, making them suitable for applications such as small robotics, cameras, and medical equipment. On the other hand, hybrid stepper motors offer higher torque, precise positioning, and repeatable movement, making them ideal for applications involving CNC machines, 3D printers, and industrial automation. By understanding the differences, advantages, and suitable applications of each stepper motor type, you can make informed decisions based on their specific project requirements.
