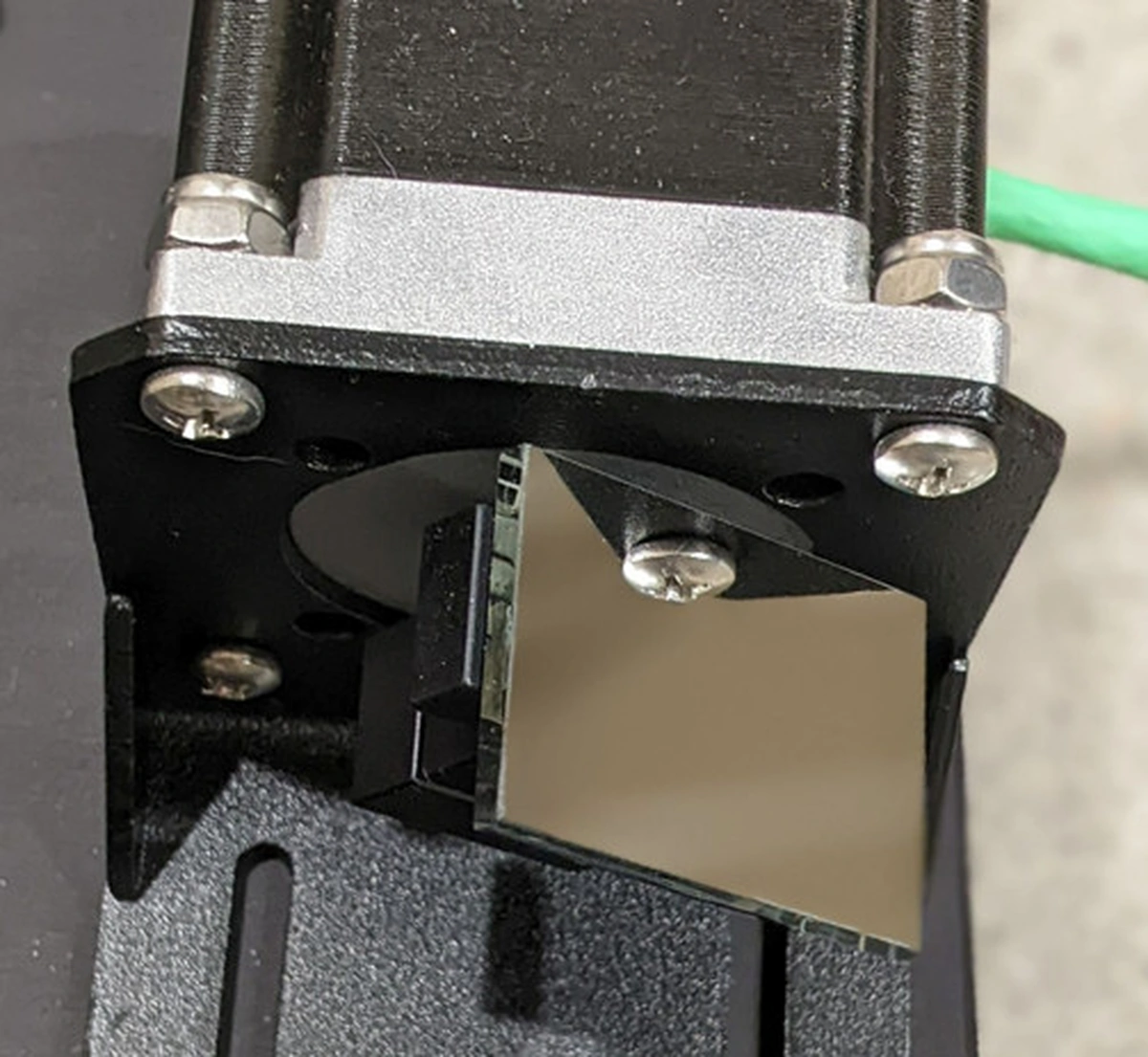

Selection Guide for Stepper Motors

In the realm of automation technology and robotics, the stepper motor holds a prominent role. This electric motor moves in discrete steps, making it a key component in various applications requiring precise position control. The complexity of modern machinery and robotics has necessitated the evolution of highly precise and reliable actuators like stepper motors. This article provides a comprehensive guide on how to select the ideal stepper motor for your specific application, covering all essential aspects from the basic working principle to various types and performance factors.

Understanding Stepper Motors

Before diving into selection criteria, it's essential to comprehend what stepper motors are and how they function. Stepper motors are brushless DC electric motors that divide a full rotation into an equal number of steps. The motor's position can be commanded to move and hold at one of these steps without any feedback sensor (open-loop controller), offering repeatable and precise positioning and speed control.

Types of Stepper Motors

Before diving into the selection process, it is essential to understand the different types of stepper motors available. Each comes with specific characteristics that make them suitable for particular applications.

• Permanent Magnet Stepper Motor: This type of stepper motor uses a permanent magnet in its rotor and operates on the principle of attraction and repulsion between the rotor and stator magnetic fields.
• Variable Reluctance Stepper Motor: The variable reluctance stepper motor has a plain iron rotor and operates based on the principle that the least magnetic path will capture the magnetic flux lines.
• Hybrid Stepper Motor: The hybrid stepper motor combines the best characteristics of the permanent magnet and variable reluctance types, offering better performance in terms of step resolution and torque.

Key Selection Criteria

Selection of the appropriate stepper motor involves evaluating various technical specifications and application requirements. Here are crucial factors to consider:

1. Torque Requirements:
   • Holding Torque: The amount of torque the motor can hold when not spinning. Critical for applications requiring the motor to hold a load against external forces.
   • Dynamic Torque: It refers to the torque available when the motor is rotating and varies with speed. Identifying the torque requirements at the desired operational speed is vital for the motor’s performance.
2. Step Angle: The step angle determines the resolution of the motor, i.e., the smallest angle the motor can turn in one step. Common step angles include 1.8° (200 steps per revolution) and 0.9° (400 steps per revolution). A smaller step angle results in higher resolution and smoother motion.
3. Voltage and Current Ratings: Stepper motors are typically rated by their maximum voltage and current. Operating a stepper motor within these limits ensures optimum performance without overheating. Consider your power supply capabilities when selecting a stepper motor to ensure compatibility.
4. Motor Size and NEMA Standards: Stepper motors come in various sizes, often categorized under NEMA ratings (e.g., NEMA 17, NEMA 23). These ratings provide a standard for the faceplate dimensions of the motors. Larger motors tend to offer more torque but at the cost of higher weight and increased power consumption.
5. Inductance and Resistance: The windings of a stepper motor have inherent resistance and inductance. Lower resistance allows for higher current, translating to more torque. However, high inductance can limit the motor's speed capabilities. An optimal balance must be found for your specific application.
6. Connection Configuration: Stepper motors can have bipolar or unipolar configurations. Bipolar motors require more complex driving circuitry but can produce more torque and operate more efficiently than unipolar motors due to their full utilization of the winding.
7. Intended Application: Consider the operational environment, speed, precision, and lifespan required. For high-speed applications, a motor with low inertia and high dynamic torque is preferred. For high-precision applications, consider a motor with a smaller step angle and higher holding torque.
8. Motor Speed: Stepper motors tend to lose torque as the speed increases. It's essential to consider the speed-torque curve of a stepper motor to ensure it will perform adequately at the speeds your application requires.

Additional Considerations

Beyond the core selection criteria, other factors might play into selecting the ideal stepper motor:

• Thermal Management: Assess the cooling requirements. Excessive heat can reduce the lifespan and performance of the motor.
• Drive Compatibility: Ensure the motor is compatible with the intended drive circuitry, considering voltage, current, and configuration requirements.
• Customization Needs: Depending on the application, you might need customized shafts, cables, or encoders.

Conclusion

In the quest to select the perfect stepper motor for your application, understanding the nuanced requirements of your application is paramount. Evaluating factors such as torque, step angle, voltage and current ratings, motor size, inductance, resistance, and connection configuration ensures that you choose a motor that aligns with your specific needs. Remember, the best stepper motor is not necessarily the most powerful or expensive one, but the one that matches your application requirements most closely. Careful consideration and evaluation of these aspects will lead to improved reliability, efficiency, and performance in your projects.
